Modify Main Model and Link to Submodel

The submodel for the Op 30 Install PCB activity is in the TutorialSubmodel.vsd file, which is in your Process Simulator working directory in the Tutorial folder. Please locate this file and open it in Process Simulator. You may note that this submodel is itself a complete model that can be simulated.

Create Hyperlink

We will use a hyperlink to link the Op 30 Install PCB activity to its submodel.

  1. Return to the main model and choose Variables and Attributes from the Process Simulator ribbon, which will open the Model Elements dialog.

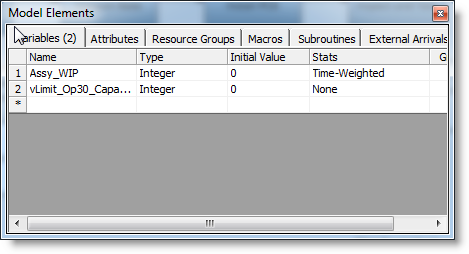

  2. Add the variable vLimit_Op30_Capacity as an Integer with the Initial Value of 0, as shown below:

This variable will be used to limit the capacity in the submodel to 1.  Since Op 30 has a capacity of 1, we want that to be the case in the submodel.

  1. Open the properties for the route between Op 30 and Op 40. (ROUTING: Op 30_Install PCB TO Op 40_Inspect and Test)
  2. Select "(None)" in the Resource field.
  3. Click on the Logic button to open the Logic Builder.

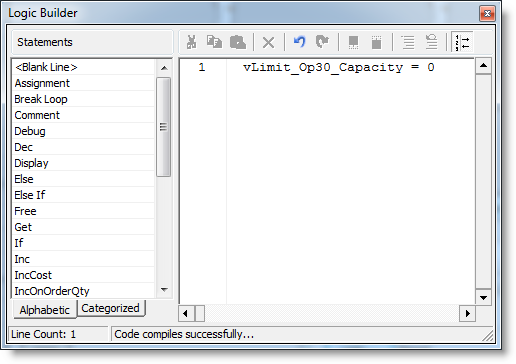

  4. Double click on the Assignment statement, and select the vLimit_Op30_Capacity variable from the drop down list, and set the Value to 0.  When you are done, the logic should look like the following:

  1. Select the Op 30 Install PCB activity.

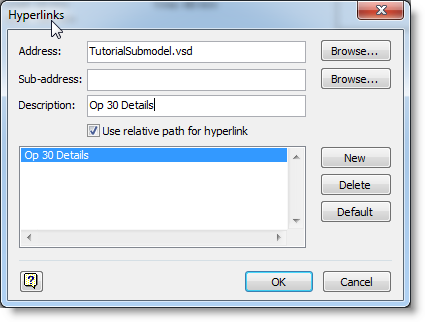

  1. Open the Visio Hyperlinks dialog by either clicking the Hyperlink button on the Visio Insert ribbon or using the keyboard shortcut Ctrl+K.
  2. Click the Browse button for the Address, choose the local file option, and then select the TutorialSubmodel.vsd file.
  3. Rename the Description to "Op 30 Details".

  1. Click OK to save the hyperlink. If you move the mouse over the activity, you will notice that it shows a hyperlink icon next to the mouse cursor to signify the hyperlink.
  2. Return to the TutorialSubmodel.vsd file.
