Shapes

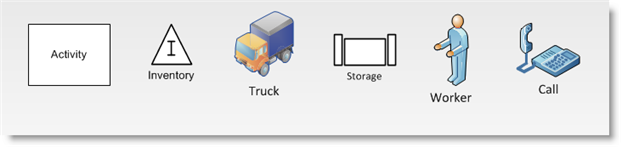

All shapes contained in the Process Simulator stencil are assigned one of six shape types: Activity, Entity, Resource, Buffer, Storage, or Plain Graphic. Furthermore, the type of any shape can be changed by right clicking on the shape after it has been placed in the layout and selecting a shape type from the menu.



You may also use shapes from any stencil in Visio, and assign them Process Simulator types by right clicking on them once they have been placed in the layout.

Please note: By default, any shape placed in the layout from a stencil other than Process Simulator will be an activity type unless changed by the user. For more information on placing shapes, see Placing Shapes.
